Our Product
Quality You Can Trust, Innovation You Can Feel

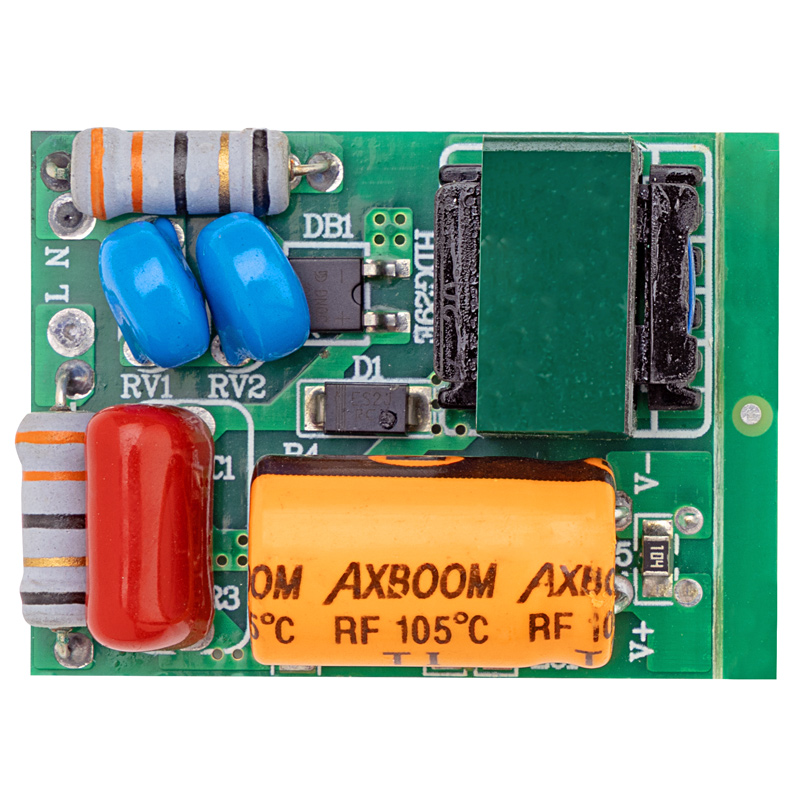

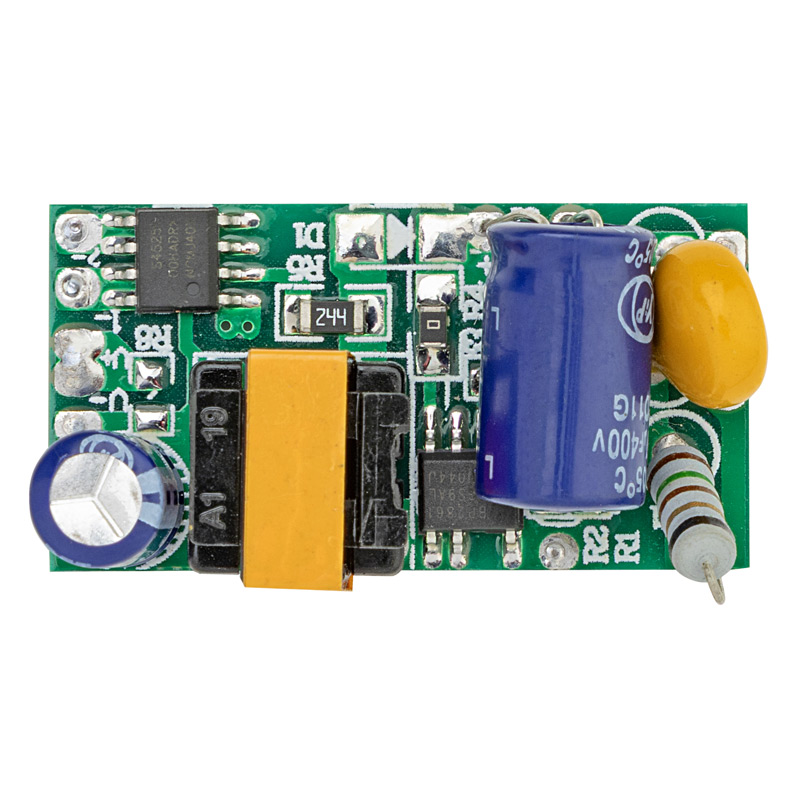

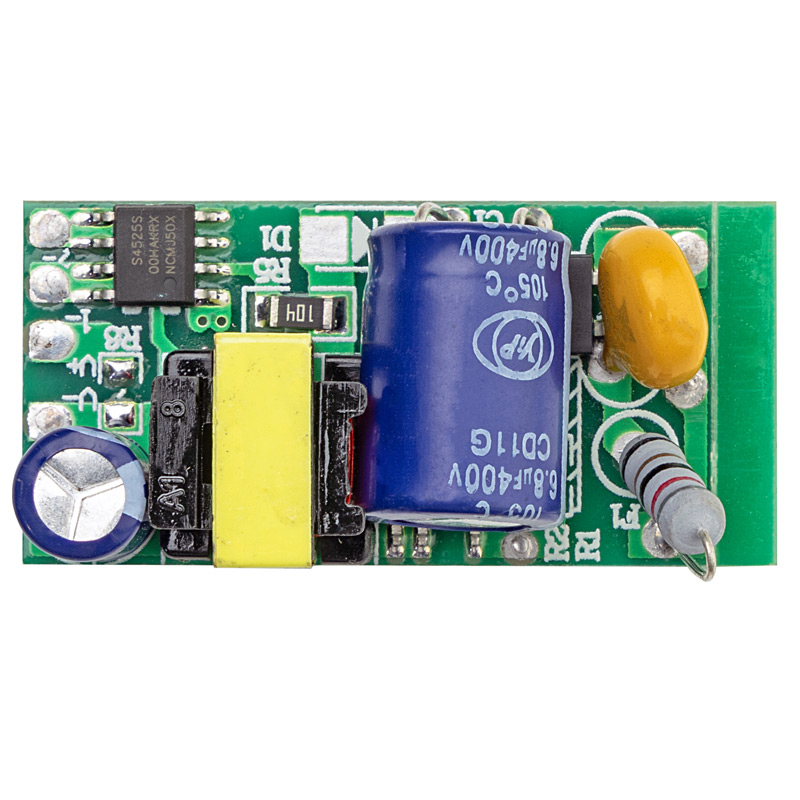

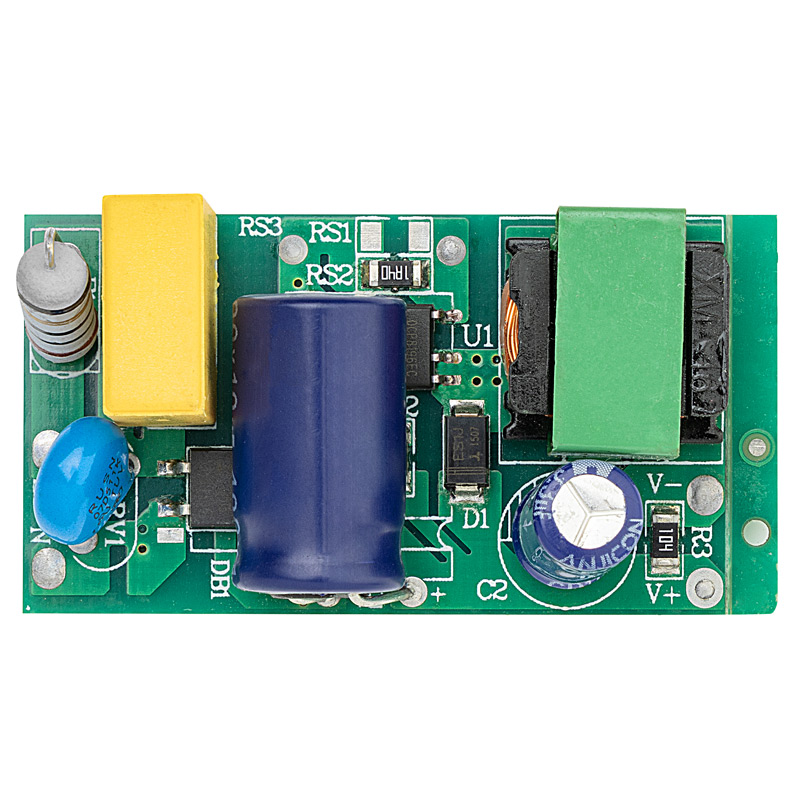

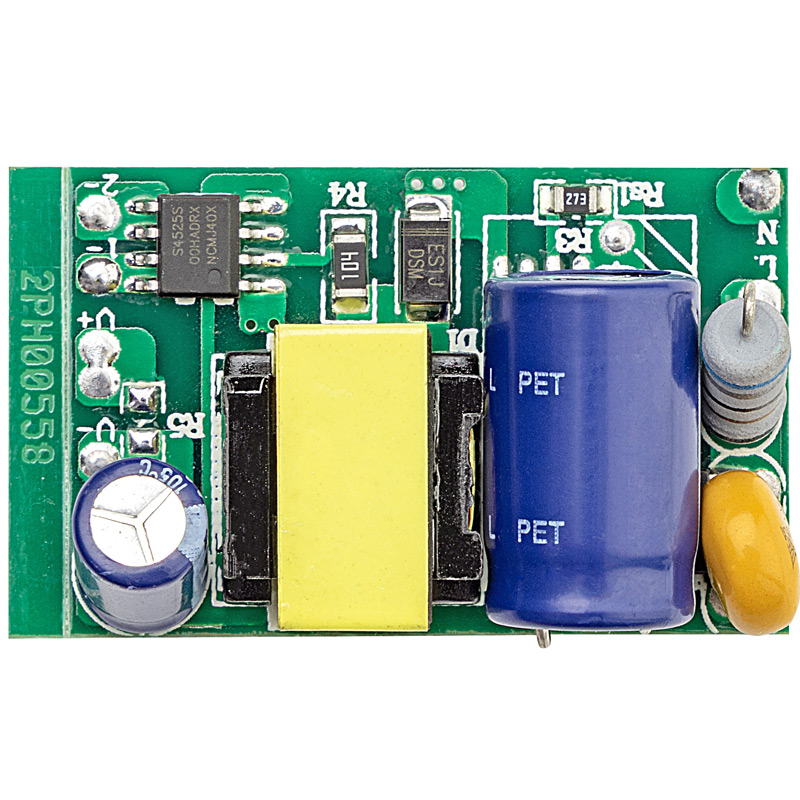

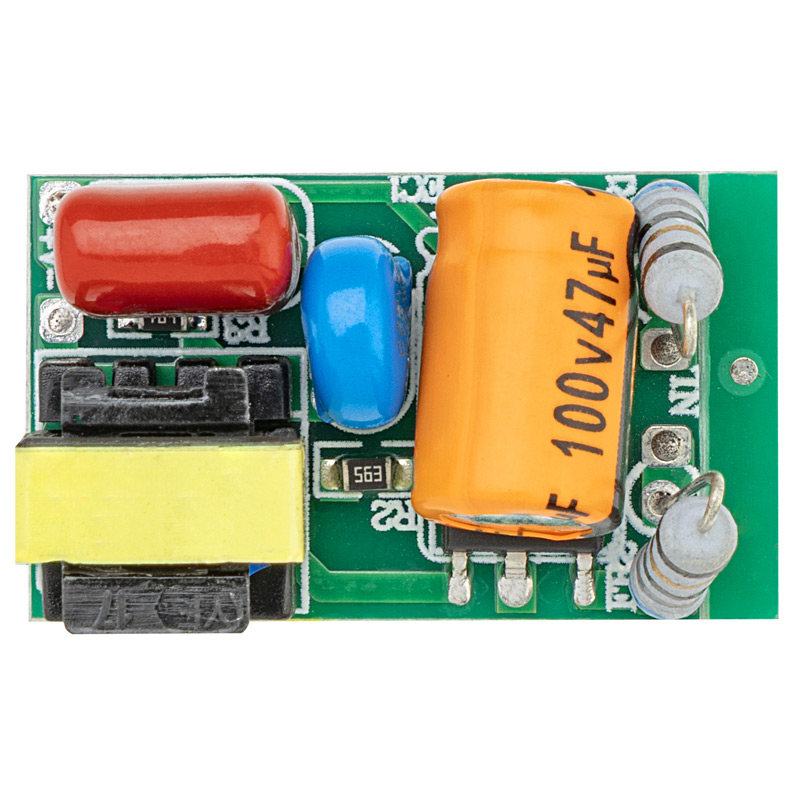

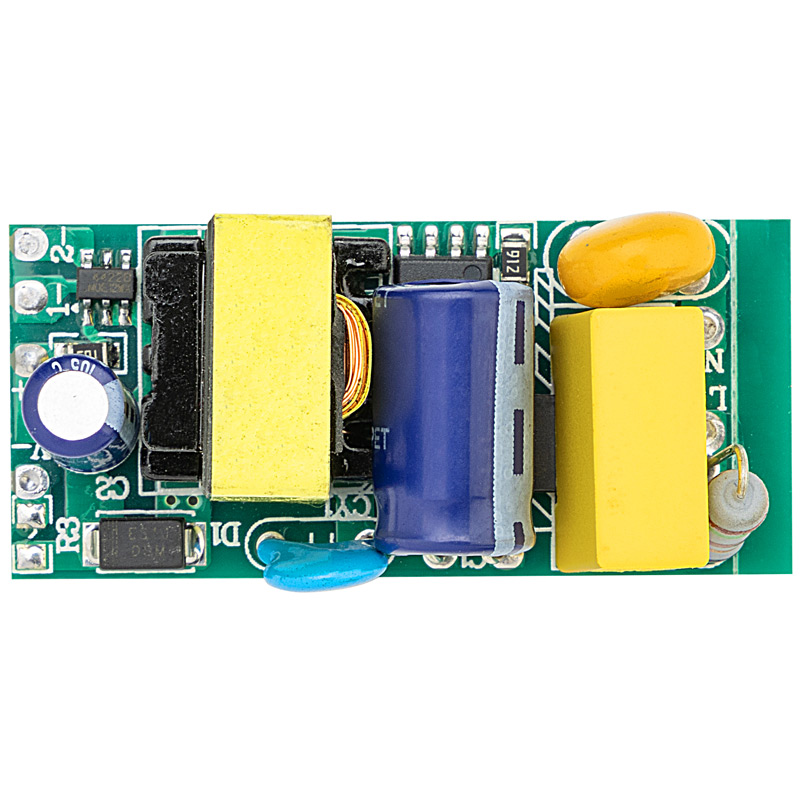

Panel Light Drivers
Specifications
- Energy Efficiency
- Stable Current Output
- Extra Durability
- Environmental Friendly
Product Variants
| Sr. No. | Driver Model | Input Voltage | Output Voltage | Surge | Output Current | Power Factor | Size |
|---|---|---|---|---|---|---|---|
| 1 | 8W / 120mA LPF Driver | 85-265 V | 68 V | 2.5 Kv | 120 mA | 0.6 | 19 x 27 x 14 |
| 2 | 8W / 120mA HPF Driver | 85-265 V | 68 V | 2.5 Kv | 120 mA | 0.9 | 18 x 28 x 14 |
| 3 | 8W / 120mA 3 in 1 Driver | 85-265 V | 68 V | 2.5 Kv | 120 mA | 0.6 | 19 x 35 x 14 |
| 4 | 15W / 190mA LPF Driver | 85-265 V | 80 V | 2.5 Kv | 190 mA | 0.6 | 25 x 42 x 14 |
| 5 | 15W / 190mA HPF Driver | 85-440 V | 80 V | 4 Kv | 190 mA | 0.9 | 27 x 29 x 12 |
| 6 | 15W / 190mA 3 in 1 Driver | 85-265 V | 80 V | 2.5 Kv | 190 mA | 0.6 | 18 x 34 x 14 |
| 7 | 8-24W / 280mA HPF Driver | 85-440 V | 80 V | 2.5 Kv | 280 mA | 0.9 | 27 x 35 x 13 |
| 8 | 8-24W / 280mA 3 in 1 Driver | 85-265 V | 80 V | 2.5 Kv | 280 mA | 0.6 | 23 x 36 x 14 |
| 9 | 4-7W / 280mA 3 in 1 Driver | 85-265 V | 21 V | 2.5 Kv | 280 mA | 0.6 | 19 x 37 x 16 |
8W / 120mA LPF Driver
Input Voltage
85–265 V
85–265 V
Surge
2.5 Kv
2.5 Kv
Power Factor
0.6
0.6
Output Voltage
68 V
68 V
Output Current
120 mA
120 mA
Size
19 x 27 x 14
19 x 27 x 14
8W / 120mA HPF Driver
Input Voltage
85–265 V
85–265 V
Surge
2.5 Kv
2.5 Kv
Power Factor
0.6
0.6
Output Voltage
68 V
68 V
Output Current
120 mA
120 mA
Size
18 x 28 x 14
18 x 28 x 14
8W / 120mA 3 in 1 Driver
Input Voltage
85–265 V
85–265 V
Surge
2.5 Kv
2.5 Kv
Power Factor
0.6
0.6
Output Voltage
68 V
68 V
Output Current
120 mA
120 mA
Size
19 x 35 x 14
19 x 35 x 14
15W / 190mA LPF Driver
Input Voltage
85–265 V
85–265 V
Surge
2.5 Kv
2.5 Kv
Power Factor
0.6
0.6
Output Voltage
80 V
80 V
Output Current
190 mA
190 mA
Size
25 x 42 x 14
25 x 42 x 14
15W / 190mA HPF Driver
Input Voltage
85–440 V
85–440 V
Surge
4 Kv
4 Kv
Power Factor
0.9
0.9
Output Voltage
80 V
80 V
Output Current
190 mA
190 mA
Size
27 x 29 x 12
27 x 29 x 12
15W / 190mA 3 in 1 Driver
Input Voltage
85–265 V
85–265 V
Surge
2.5 Kv
2.5 Kv
Power Factor
0.6
0.6
Output Voltage
80 V
80 V
Output Current
190 mA
190 mA
Size
18 x 34 x 14
18 x 34 x 14
8-24W / 280mA HPF Driver
Input Voltage
85–440 V
85–440 V
Surge
4 Kv
4 Kv
Power Factor
0.9
0.9
Output Voltage
80 V
80 V
Output Current
280 mA
280 mA
Size
27 x 35 x 13
27 x 35 x 13
8-24W / 280mA 3 in 1 Driver
Input Voltage
85–265 V
85–265 V
Surge
2.5 Kv
2.5 Kv
Power Factor
0.6
0.6
Output Voltage
80 V
80 V
Output Current
280 mA
280 mA
Size
23 x 36 x 14
23 x 36 x 14
4-7W / 280mA 3 in 1 Driver
Input Voltage
85–265 V
85–265 V
Surge
2.5 Kv
2.5 Kv
Power Factor
0.6
0.6
Output Voltage
21 V
21 V
Output Current
280 mA
280 mA
Size
19 x 37 x 16
19 x 37 x 16
